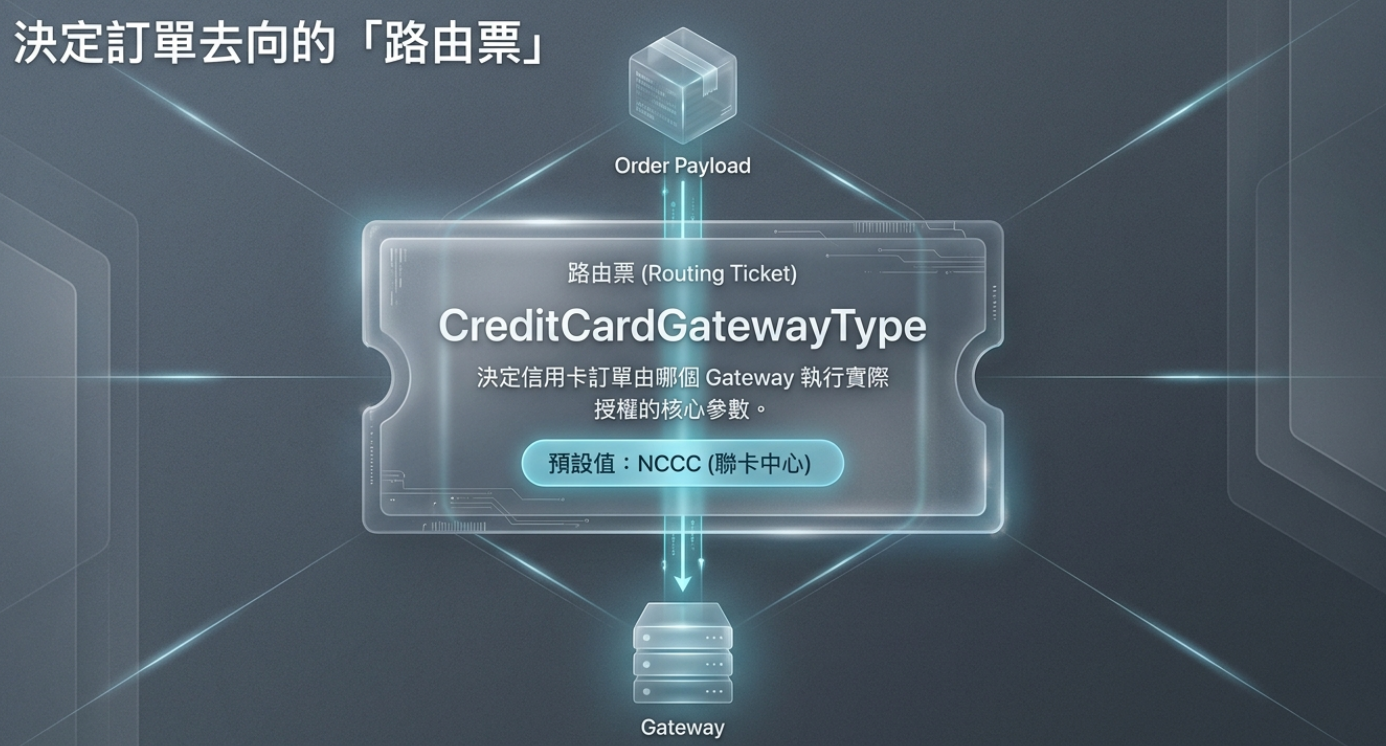

CreditCardGatewayType 是一張路由票，決定這筆信用卡訂單要讓哪個 Gateway 執行實際授權。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public enum PayProcessCreditCardGatewayTypeEnum
{
    /// <summary>聯卡中心（台灣本地信用卡，舊版主流）</summary>
    NCCC = 0,

    /// <summary>TapPay SDK（帶 Prime Token）</summary>
    TapPay = 1,

    /// <summary>九一金流（帶 CardToken + IssuerBankCode）</summary>
    Nine1Payment = 2,

    /// <summary>PMW 跨國金流（Stripe / CheckoutDotCom / KPay...）</summary>
    PaymentMiddleWare = 3,
}

預設值：PayProcessContextEntity 初始化時預設 NCCC（context 第 57 行）

3

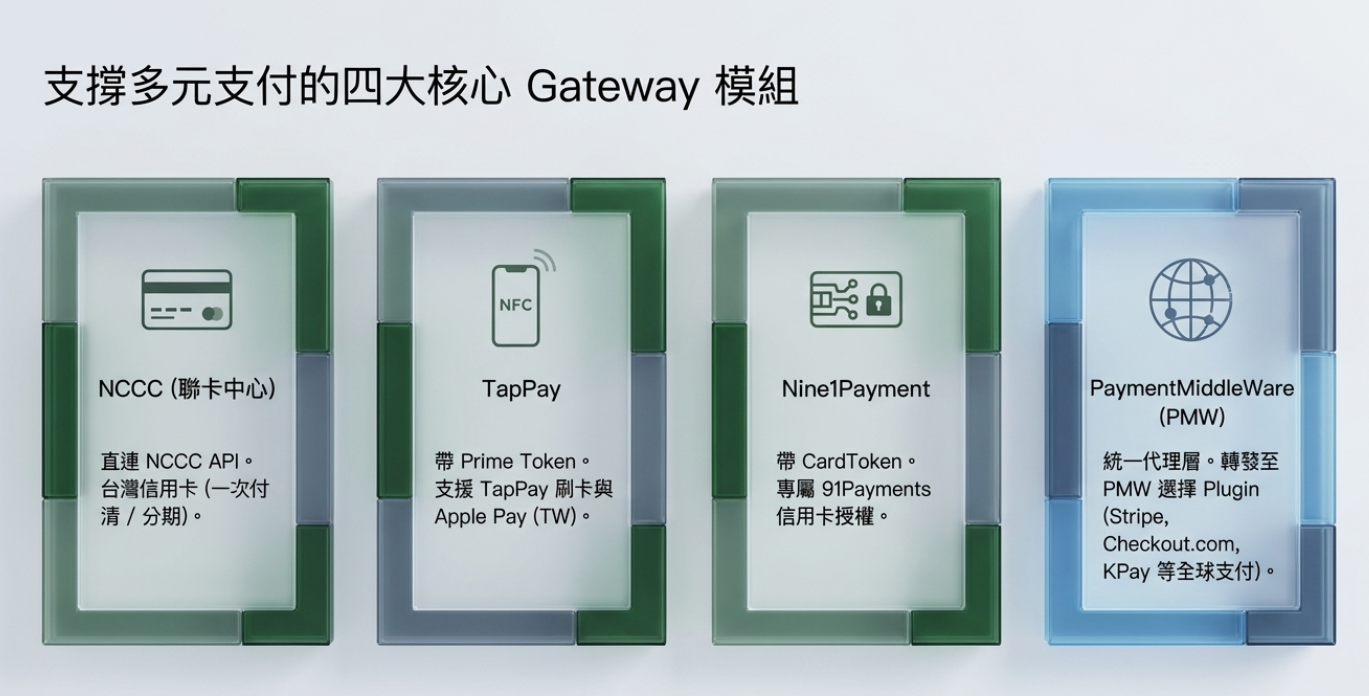

四個 Gateway 各代表什麼？

值 代表 Gateway 授權方式 典型付款方式
NCCC 聯卡中心 直連 NCCC API 台灣信用卡一次付清、分期
TapPay TapPay SDK 帶 Prime Token 呼叫 TapPay TapPay 刷卡、Apple Pay (TW)
Nine1Payment 九一金流 帶 CardToken 呼叫 91Payments 91Payments 信用卡
PaymentMiddleWare PMW 統一代理層 轉發到 PMW，由 PMW 選 Plugin Stripe、CheckoutDotCom、KPay、Razer…

3

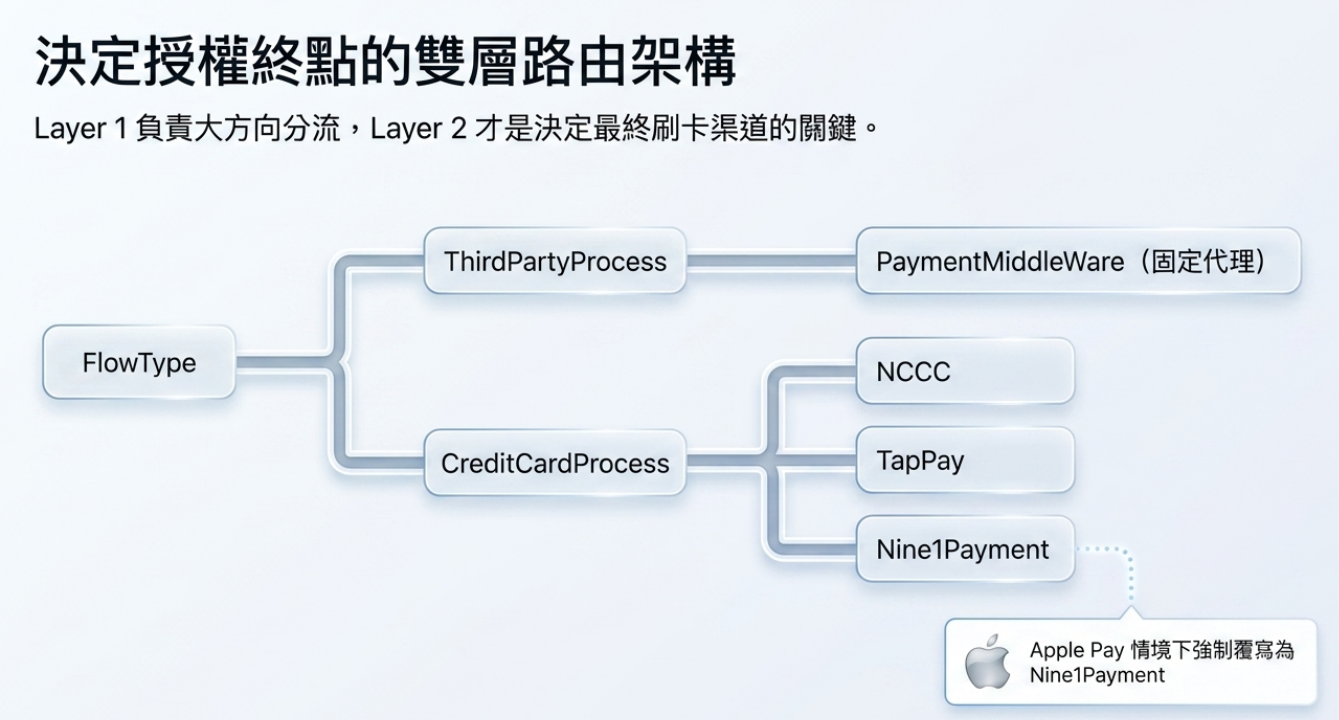

和 FlowType 的關係

CreditCardGatewayType 是在 FlowType 框架內的第二層路由。

flowchart TD
    A["PayProcessFlowType\n第一層路由"] -->|CreditCardProcess| B["CreditCardGatewayType\n第二層路由"]
    A -->|ThirdPartyProcess| C["PaymentMiddleWare\n（CreditCardGatewayType 固定為 PMW）"]
    B --> D["NCCC"]
    B --> E["TapPay"]
    B --> F["Nine1Payment"]

    style A fill:#4A7CB5,color:#fff
    style B fill:#7B5EA7,color:#fff
    style C fill:#5BA85B,color:#fff
  • ThirdPartyProcess（PMW 金流）→ CreditCardGatewayType 幾乎固定為 PaymentMiddleWare
  • CreditCardProcess（台灣信用卡直連）→ 才需要進一步看是 NCCC / TapPay / Nine1Payment

3

CreditCardGatewayType 由 Cart 端的 GetPayDataProcessor 決定，透過 CompleteForNewCartV2 POST body 帶給 mweb。

flowchart LR
    A["前端結帳\nCheckoutOrderCompleteRequest"] --> B["Cart\nGetPayDataProcessor"]
    B --> C{"決定 CreditCardGatewayType"}
    C --> D["OldPayProcessContext\n（context）"]
    D -->|POST| E["mweb\nCompleteForNewCartV2"]
    E --> F["Request.ToTypedObject\n直接還原整個 context"]
    F --> G["_payProcessService\n.CreateTradesOrder(context)"]

    style B fill:#4A7CB5,color:#fff
    style E fill:#7B5EA7,color:#fff

Step 1：查 ShopStaticSetting → OriginalCreditCardGatewayType

1
2
group: PaymentServiceProvider
key:   <PayProfileType>（如 CreditCardOnce_Stripe）
  • 有值 → Parse 為 enum，設為 OriginalCreditCardGatewayType
  • 無值 → 預設 PaymentMiddleWare

Step 2：決定最終 CreditCardGatewayType

1
2
3
4
5
6
7
8
9
10
11
12
if (checkoutContext.Request.CreditCardGatewayType.IsNullOrWhiteSpace())
{
    // 前端沒帶 → 使用 Step 1 的值
    payProcessContext.CreditCardGatewayType = payProcessContext.OriginalCreditCardGatewayType;
}
else
{
    // 前端有帶 → 以前端傳入的值為主
    payProcessContext.CreditCardGatewayType = (PayProcessCreditCardGatewayTypeEnum)
        Enum.Parse(typeof(PayProcessCreditCardGatewayTypeEnum),
                   checkoutContext.Request.CreditCardGatewayType, true);
}

特殊情境：Apple Pay 強制 Nine1Payment

1
2
// Cart 端直接強制覆蓋
payProcessContext.CreditCardGatewayType = PayProcessCreditCardGatewayTypeEnum.Nine1Payment;

GetCreditCardGateway 優先序

1
2
3
4
5
6
7
8
9
1. ShopStaticSetting (shopId=0 全域)
   group: CreditCard / key: PaymentServiceProviderSetting
   → IsActive=true 且 shopId 不在 ExcludeShopIdList
   → 回傳 PaymentServiceProvider

2. Fallback → ShopDefault
   group: CreditCard / key: PaymentGatewayType

3. 若以上皆空 → 預設 NCCC

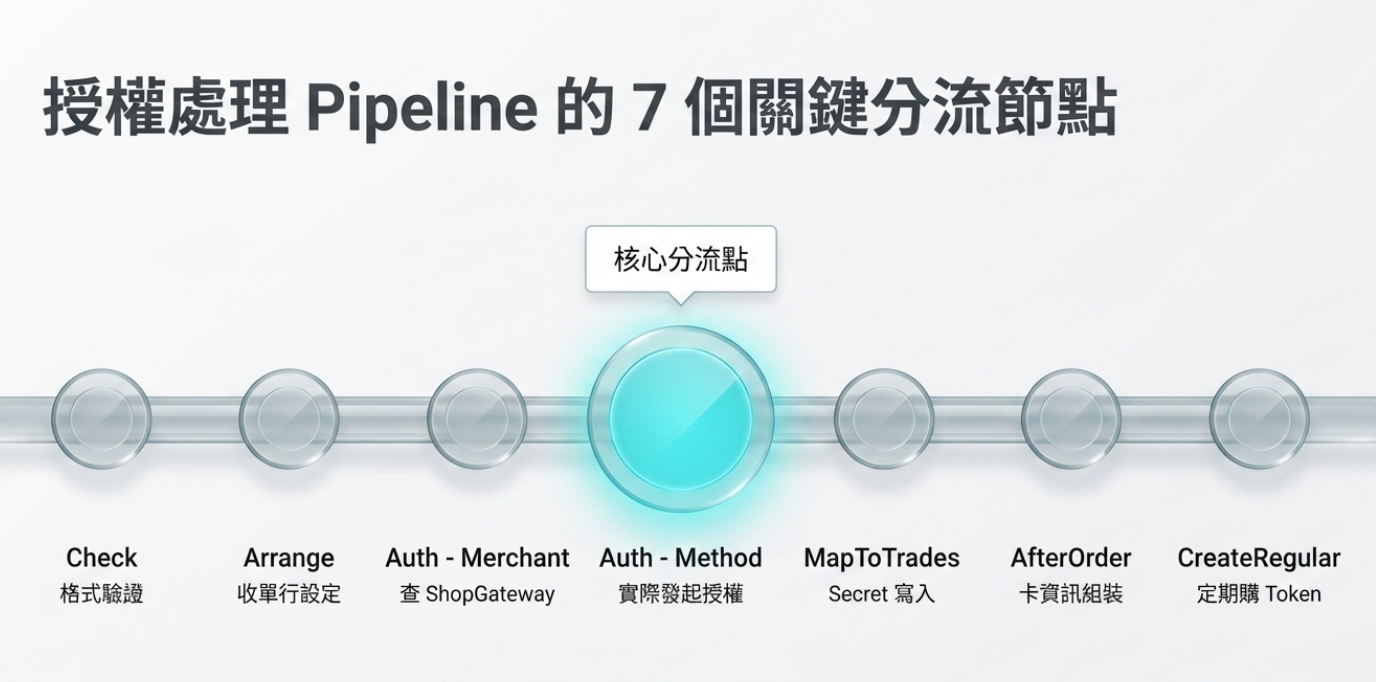

CreditCardGatewayType 在 mweb 的 Processor Pipeline 裡共有 7 個分流點，每個點的行為完全不同。

3

CheckCreditCardProcessor — 格式驗證

1
2
3
4
5
6
// TapPay / Nine1Payment → 不做 NCCC 格式驗證，直接略過
if (CreditCardGatewayType == TapPay || CreditCardGatewayType == Nine1Payment)
{
    return;
}
// NCCC / PaymentMiddleWare → 繼續做卡號格式驗證

ArrangeDataProcessor — 收單行設定

1
2
3
4
5
6
7
8
9
10
11
// 僅 TapPay / Nine1Payment 才從卡片資訊取 AcquiringBankCode
if (PayProcessFlowType == CreditCardProcess
    && (CreditCardGatewayType == TapPay || CreditCardGatewayType == Nine1Payment)
    && IsNeedCreditCheck == false)
{
    AcquiringBankInfo.AcquiringBankCode =
        CreditCardGatewayType == TapPay
            ? TapPayCardInfo.BankId
            : PaymentInfo.CreditCardInfo.IssuerBankCode;
}
// NCCC / PaymentMiddleWare → 使用預設收單行代號

AuthProcessor — 實際發起授權（核心分流）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
// 設定 PaymentServiceProvider 欄位（下游路由依據）
paymentRequest.PaymentServiceProvider = context.CreditCardGatewayType.ToString();

// NCCC / TapPay → 查 ShopPaymentGateway 取 MerchantId / TerminalId
if (CreditCardGatewayType == NCCC || CreditCardGatewayType == TapPay)
{
    paymentRequest.GatewayName    = shopPaymentGateway.AcquiringBankCode;
    paymentRequest.MerchantId     = shopPaymentGateway.MerchantId;
    paymentRequest.TerminalId     = shopPaymentGateway.TerminalId;
    paymentRequest.ProxyMerchantId = (CreditCardGatewayType == TapPay)
        ? shopPaymentGateway.ProxyMerchantId : null;
}
// Nine1Payment / PaymentMiddleWare → 不查 ShopPaymentGateway

switch (CreditCardGatewayType)
{
    case TapPay:
        → GetPaymentResponseAndProcessAuthDataByTapPay()
    case Nine1Payment:
        → GetPaymentResponseAndProcessAuthDataByNine1Payment()
    default: // NCCC + PaymentMiddleWare 共用
        → PaymentService.CreateAuth(paymentRequest)
        // paymentRequest.PaymentServiceProvider = "PaymentMiddleWare"
        // 讓下游知道要路由到 PMW
}

PMW 核心：走 default 分支，paymentRequest.PaymentServiceProvider = "PaymentMiddleWare" 告知下游路由到 PMW，而非 NCCC 直連。

MapToTradesOrderProcessor — 訂單 Secret 寫入

flowchart TD
    A["CreditCardGatewayType"] -->|TapPay| B["TapPayCardInfo\n→ LastFour / IdentificationCode"]
    A -->|Nine1Payment| C["PaymentInfo.CreditCardInfo\n→ FirstSix / LastFour"]
    A -->|"NCCC / PaymentMiddleWare"| D["不特別寫入卡資料\n（PMW 授權後另外回填 CreditCardInfo）"]
    A -->|"ApplePay + Nine1Payment 特例"| E["GetCreditCardTradesOrderSecret\n(PaymentInfo.CreditCardInfo)"]

    style B fill:#4A7CB5,color:#fff
    style C fill:#7B5EA7,color:#fff
    style D fill:#888,color:#fff
    style E fill:#D4813A,color:#fff

AfterOrderProcessor — 快速結帳卡資訊組裝

訂單成立後，組 PayTypeExpressCreditCardEntity 的資料來源因 Gateway 不同而完全不同：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
switch (CreditCardGatewayType)
{
    case TapPay:
    case NCCC:
        → TapPayCardInfo.LastFour / IdentificationCode / BankId

    case Nine1Payment:
        → PaymentInfo.CreditCardInfo.FirstSix + LastFour + ExpiryDate

    case PaymentMiddleWare:
        → context.CreditCardInfo.Brand          // 卡組織（Visa / MasterCard...）
          context.CreditCardInfo.CreditCardNo   // 遮罩卡號
          context.CreditCardInfo.CreditCardDate // 效期

    default:
        → 空資料
}

CreateRegularOrderProcessor — 定期購 Token 記錄

1
2
3
4
5
6
7
8
9
10
11
12
13
switch (CreditCardGatewayType)
{
    case TapPay:
    case NCCC:
        → TapPayCardInfo.CreditCardToken / CreditCardKey / IdentificationCode

    case Nine1Payment:
        → PaymentInfo.CreditCardInfo.CardToken + IssuerBankCode + FirstSix + LastFour
        // Nine1Payment 額外記錄 bank_code / first_six / last_four

    // PaymentMiddleWare → 無 case
    // 定期購目前不支援 PMW
}

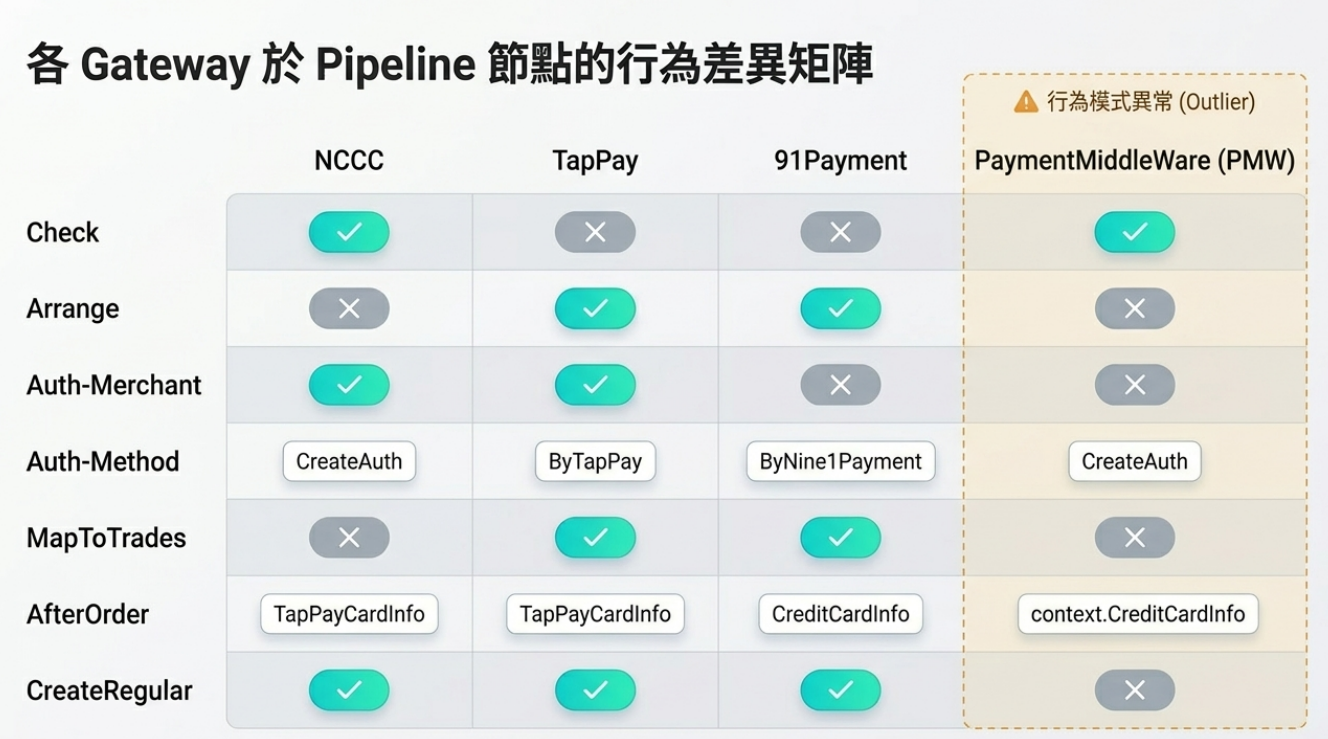

分流影響總覽

Processor NCCC TapPay Nine1Payment PaymentMiddleWare
CheckCreditCardProcessor ✅ 驗證格式 ❌ 跳過 ❌ 跳過 ✅ 驗證格式
ArrangeDataProcessor（收單行） ❌ 不設定 ✅ 從 TapPayCardInfo 取 ✅ 從 CreditCardInfo 取 ❌ 不設定
AuthProcessor（查 ShopGateway） ✅ 查 MerchantId ✅ 查 MerchantId ❌ 不查 ❌ 不查
AuthProcessor（授權方法） CreateAuth (default) ByTapPay ByNine1Payment CreateAuth (default)
MapToTradesOrderProcessor ❌ 不寫卡資料 ✅ TapPayCardInfo ✅ CreditCardInfo ❌ 不寫（PMW 另回填）
AfterOrderProcessor（卡資訊來源） TapPayCardInfo TapPayCardInfo CreditCardInfo context.CreditCardInfo
CreateRegularOrderProcessor ✅ TapPay Token ✅ TapPay Token ✅ Nine1Payment Token ❌ 不支援

3

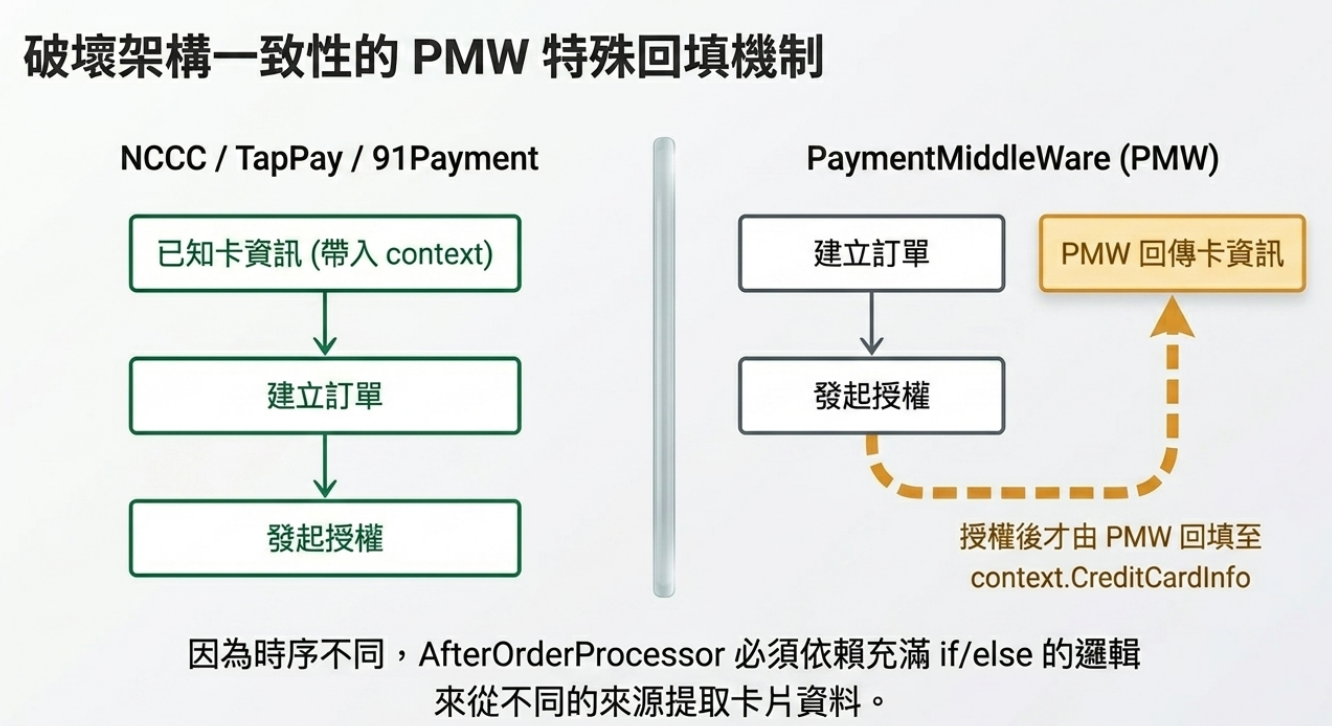

PaymentMiddleWare 是四個 Gateway 中設計最不一樣的一個

PMW 授權後的特殊回填：context.CreditCardInfo

NCCC / TapPay / Nine1Payment 在建單前就知道卡資訊（帶進 context），但 PMW 的卡資訊是授權後才由 PMW 回傳。

1
2
3
4
5
6
7
8
NCCC / TapPay / Nine1Payment：
  前端 → 帶卡資訊進 context → 建單 → 授權
  （建單前就有卡號）

PaymentMiddleWare：
  前端 → 帶卡資訊進 context → 建單 → 呼叫 PMW 授權 → PMW 回傳卡資訊
  → 授權成功後回填 context.CreditCardInfo
  （建單前卡資料尚未確認）

因此 AfterOrderProcessor 對 PMW 要從 context.CreditCardInfo 取資料，而非 TapPayCardInfo 或 PaymentInfo.CreditCardInfo。

3

flowchart TD
    A["用戶選擇付款方式\n（PayProfileType）"] --> B["Cart\nGetPayDataProcessor\n決定 CreditCardGatewayType"]

    B -->|"CreditCardOnce\nCreditCardInstallment"| C["查 ShopStaticSetting\nCreditCard/GatewayType"]
    C --> D{"有值？"}
    D -->|是| E["Parse → NCCC / TapPay / Nine1Payment"]
    D -->|否| F["預設 NCCC"]

    B -->|"Stripe / CheckoutDotCom\nKPay / Razer ..."| G["查 ShopStaticSetting\nPaymentServiceProvider"]
    G --> H{"有值？"}
    H -->|是| I["Parse → 通常為 PaymentMiddleWare"]
    H -->|否| J["預設 PaymentMiddleWare"]

    B -->|"ApplePay（特殊）"| K["強制 Nine1Payment"]

    E --> L["context 帶著值\nPOST → mweb"]
    F --> L
    I --> L
    J --> L
    K --> L

    L --> M["mweb CompleteForNewCartV2\nGetPayProcessDataProcessor 重新計算"]
    M --> N["Pipeline 分流\n（7 個分流點）"]

    style B fill:#4A7CB5,color:#fff
    style M fill:#7B5EA7,color:#fff
    style N fill:#5BA85B,color:#fff

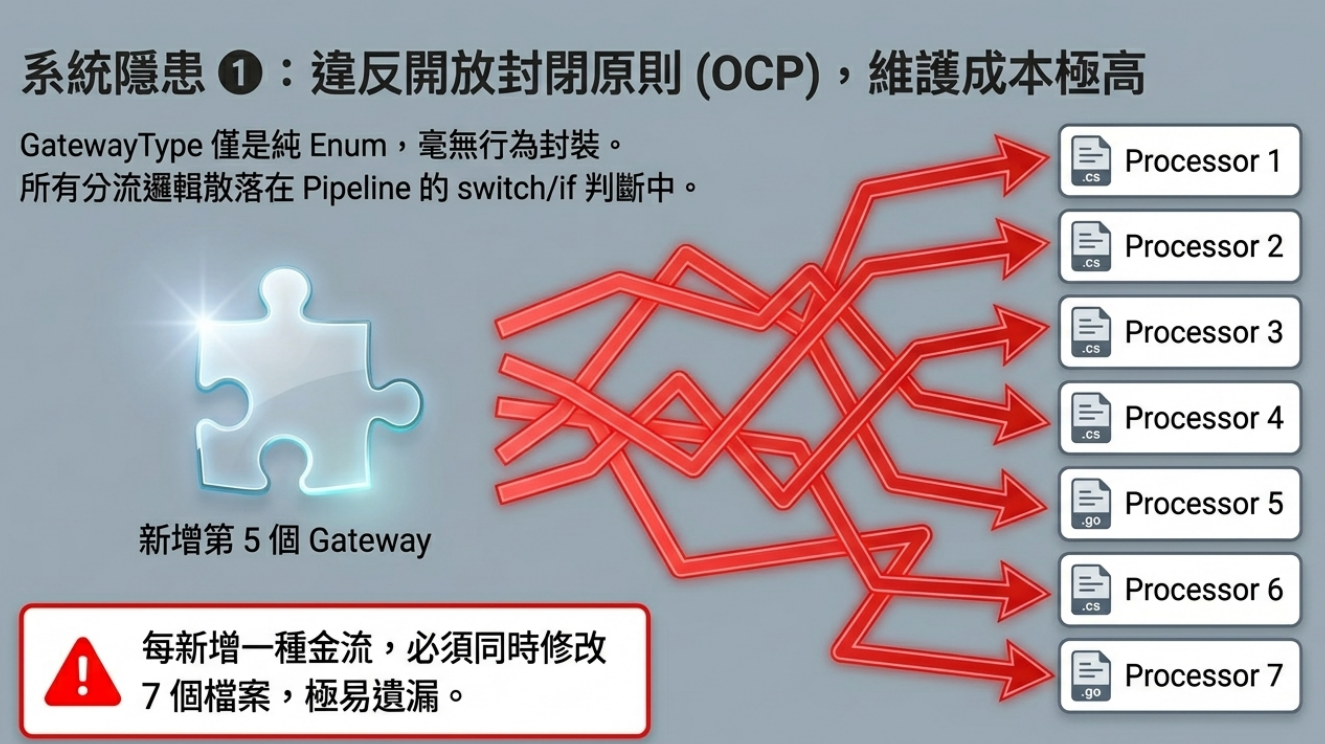

🔴 純 Enum 無行為封裝 — 違反 OCP

PayProcessCreditCardGatewayTypeEnum 是純 int enum，所有分流邏輯散落在 7 個 Processor 的 if / switch 中。新增第 5 個 Gateway 時，每個 Processor 都要同時修改：

1
2
3
4
5
CheckCreditCardProcessor.cs   → if TapPay || Nine1Payment
ArrangeDataProcessor.cs       → if TapPay || Nine1Payment
AuthProcessor.cs              → if NCCC || TapPay
AfterOrderProcessor.cs        → 3 個獨立 switch
CreateRegularOrderProcessor.cs → switch

3

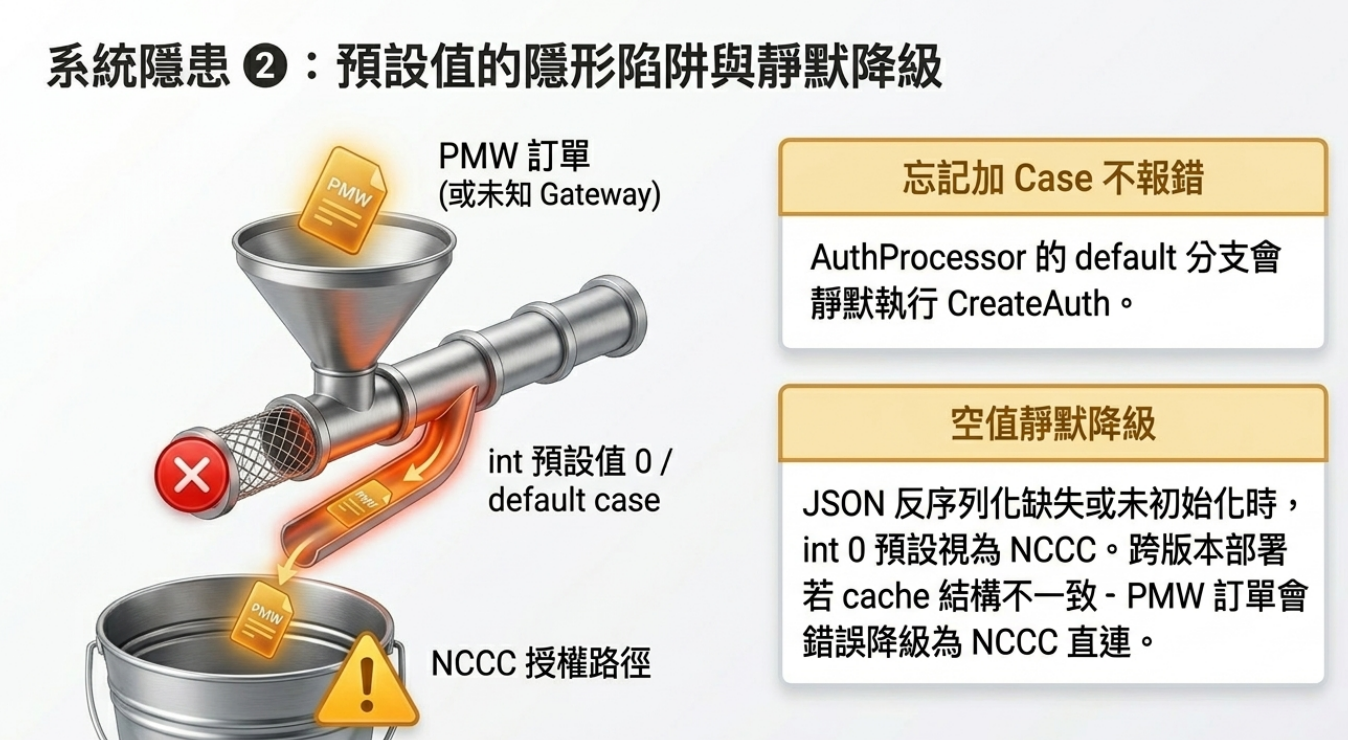

🔴 default 分支靜默吸收未知 GatewayType

AuthProcessor 的 default 同時涵蓋 NCCC 和 PaymentMiddleWare，未來新增 Gateway 若忘記加 case，**不會有編譯錯誤，會靜默走 CreateAuth**：

1
2
3
4
5
6
7
switch (context.CreditCardGatewayType)
{
    case TapPay:       ...
    case Nine1Payment: ...
    default:           // NCCC + PMW 都走這裡，第 5 個也會靜默進來
        paymentResponse = this.PaymentService.CreateAuth(paymentRequest);
}

🟠 Enum 預設值 0 = NCCC 的隱形陷阱

未初始化或 JSON 反序列化時欄位缺失，int 預設值 0 靜默對應 NCCC。若跨版本部署時 context cache 結構不一致，PMW 訂單可能靜默降級走 NCCC 授權路徑。

3

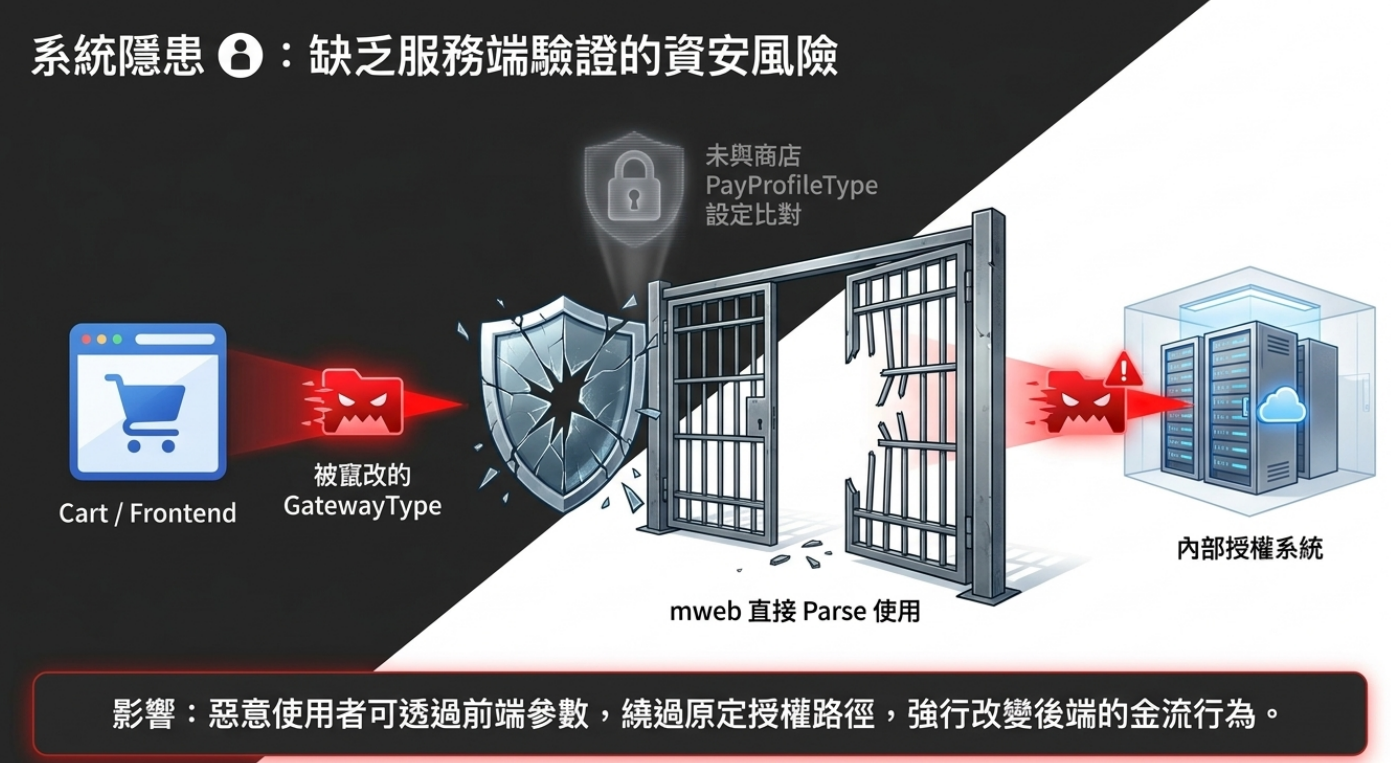

🟠 前端可竄改 GatewayType — 缺乏服務端驗證

Cart 端若前端帶入 CreditCardGatewayType，mweb 直接 Parse 使用，沒有驗證該值是否與商店的 PayProfileType 設定相符，存在惡意繞過授權路徑的風險。

3

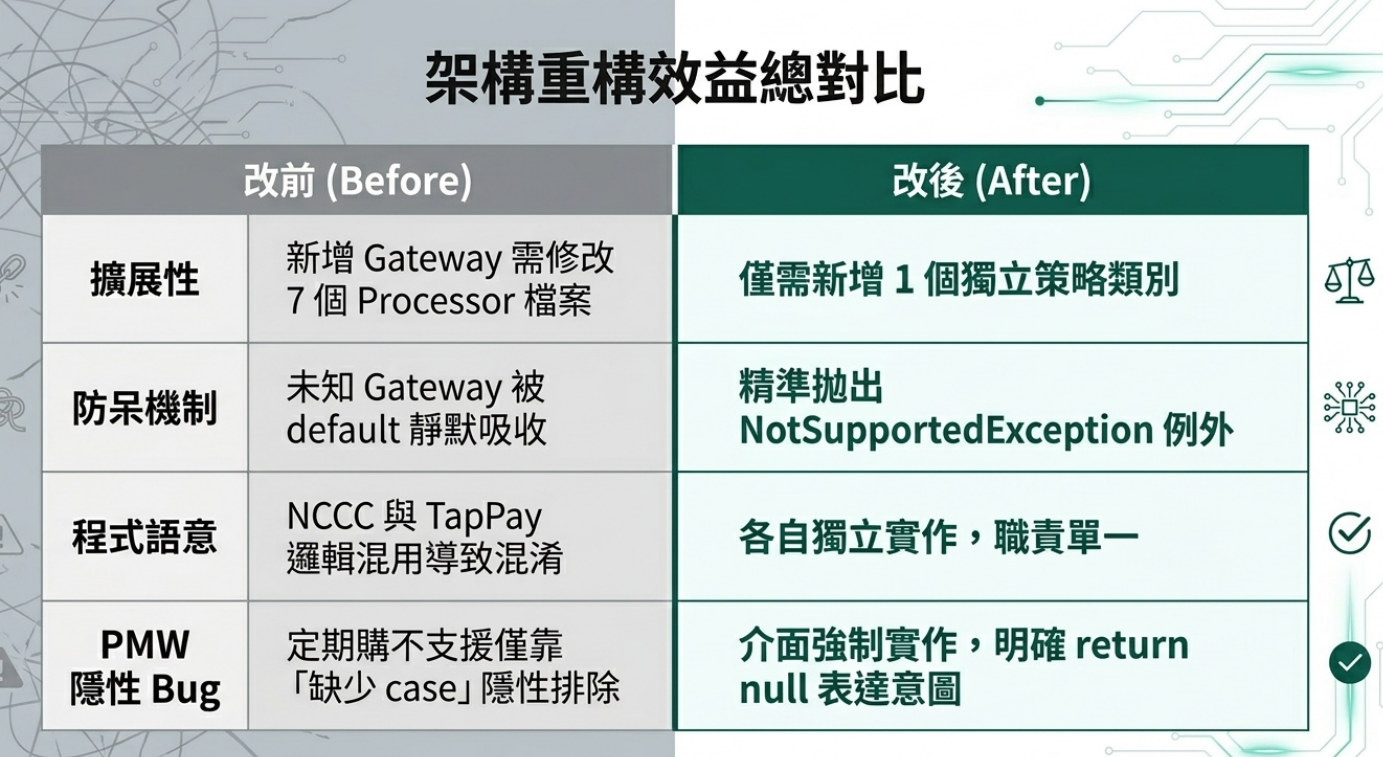

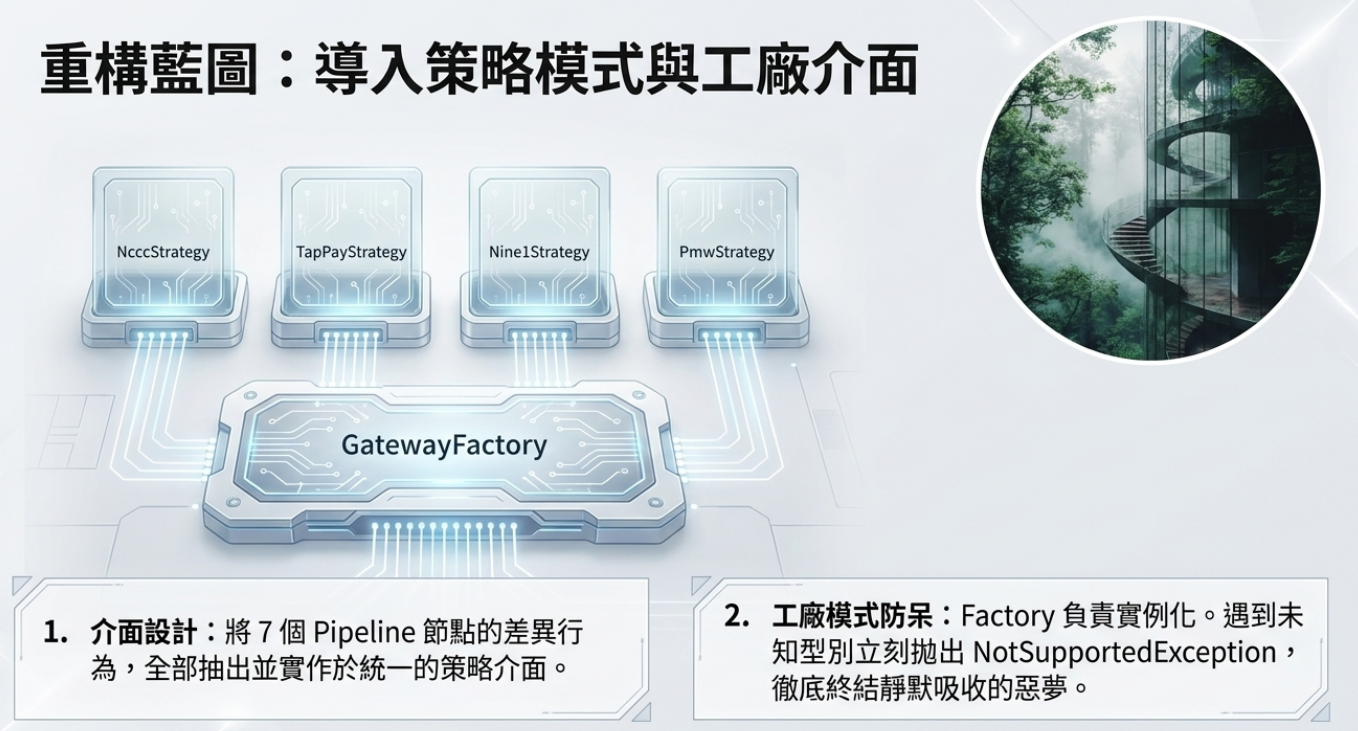

改善方向：Gateway 策略介面

將每個 Gateway 的差異行為抽成實作同一介面的策略類別，Processor 只依賴介面，不再散落 switch。

介面設計

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public interface ICreditCardGatewayStrategy
{
    PayProcessCreditCardGatewayTypeEnum GatewayType { get; }

    // CheckCreditCardProcessor
    bool ShouldSkipCardFormatValidation();

    // ArrangeDataProcessor
    string GetAcquiringBankCode(PayProcessContextEntity context);
    void ArrangeRegularOrderCreditCardInfo(PayProcessContextEntity context);

    // AuthProcessor
    bool ShouldQueryShopPaymentGateway();
    string GetProxyMerchantId(ShopPaymentGatewayEntity shopPaymentGateway);
    PaymentResponseEntity Authorize(PayProcessContextEntity context, PaymentRequestEntity request);

    // AfterOrderProcessor
    string GetMemberExpressCreditCardJson(PayProcessContextEntity context);
    PayTypeExpressCreditCardEntity<T> GetPayTypeExpressCreditCardData<T>(
        PayProcessContextEntity context,
        Func<PayProfileTypeDefEnum, string, string> maskFunc);
    string GetCreditCardIssuer(PayProcessContextEntity context);
    string GetCreditCardBrand(PayProcessContextEntity context);

    // CreateRegularOrderProcessor（不支援定期購時回傳 null）
    RegularOrderCreditCardData? GetRegularOrderCreditCardData(PayProcessContextEntity context);
}

工廠：讓未知型別拋例外而非靜默

1
2
3
4
5
6
7
8
9
10
11
12
public class CreditCardGatewayStrategyFactory
{
    private readonly IReadOnlyDictionary<PayProcessCreditCardGatewayTypeEnum,
                                         ICreditCardGatewayStrategy> _map;

    public CreditCardGatewayStrategyFactory(IEnumerable<ICreditCardGatewayStrategy> strategies)
        => _map = strategies.ToDictionary(s => s.GatewayType);

    public ICreditCardGatewayStrategy Get(PayProcessCreditCardGatewayTypeEnum type)
        => _map.TryGetValue(type, out var s) ? s
           : throw new NotSupportedException($"不支援的 CreditCardGatewayType: {type}");
}

Processor 改寫示意

1
2
3
4
5
6
7
8
9
// CheckCreditCardProcessor — Before
if (context.CreditCardGatewayType == TapPay || context.CreditCardGatewayType == Nine1Payment)
    return;
this.Validator.ValidateAndThrow(context.CreditCardInfo);

// CheckCreditCardProcessor — After
var strategy = _factory.Get(context.CreditCardGatewayType);
if (!strategy.ShouldSkipCardFormatValidation())
    this.Validator.ValidateAndThrow(context.CreditCardInfo);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// AuthProcessor — Before
if (context.CreditCardGatewayType == NCCC || context.CreditCardGatewayType == TapPay)
{
    var gw = GetShopPaymentGateway(context);
    paymentRequest.MerchantId      = gw.MerchantId;
    paymentRequest.ProxyMerchantId = context.CreditCardGatewayType == TapPay
                                     ? gw.ProxyMerchantId : null;
}
switch (context.CreditCardGatewayType)
{
    case TapPay:       paymentResponse = ByTapPay(...);       break;
    case Nine1Payment: paymentResponse = ByNine1Payment(...); break;
    default:           paymentResponse = CreateAuth(...);     break;
}

// AuthProcessor — After
var strategy = _factory.Get(context.CreditCardGatewayType);
if (strategy.ShouldQueryShopPaymentGateway())
{
    var gw = GetShopPaymentGateway(context);
    paymentRequest.MerchantId      = gw.MerchantId;
    paymentRequest.ProxyMerchantId = strategy.GetProxyMerchantId(gw);
}
paymentResponse = strategy.Authorize(context, paymentRequest);

3

改善效果

面向 改前 改後
新增第 5 個 Gateway 改 7 個 Processor 新增 1 個策略類別
PMW issuer 靜默回空 bug 存在 介面強制實作，顯式處理
未知 GatewayType default 靜默吸收 Factory 拋出 NotSupportedException
NCCC + TapPay 語意混用 共用 case 導致混淆 各自獨立實作
PMW 定期購不支援 靠缺少 case 隱性排除 return null 明確表達

3
